Professional-grade industrial filtration solution designed for critical process applications requiring stable, high-efficiency separation performance.
| Quantity: | |
|---|---|

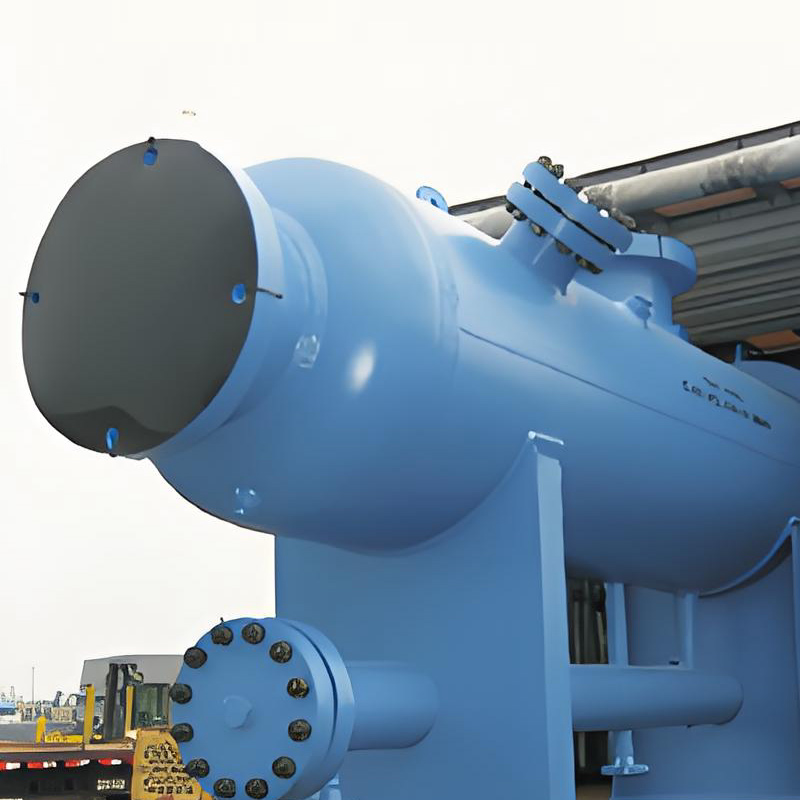

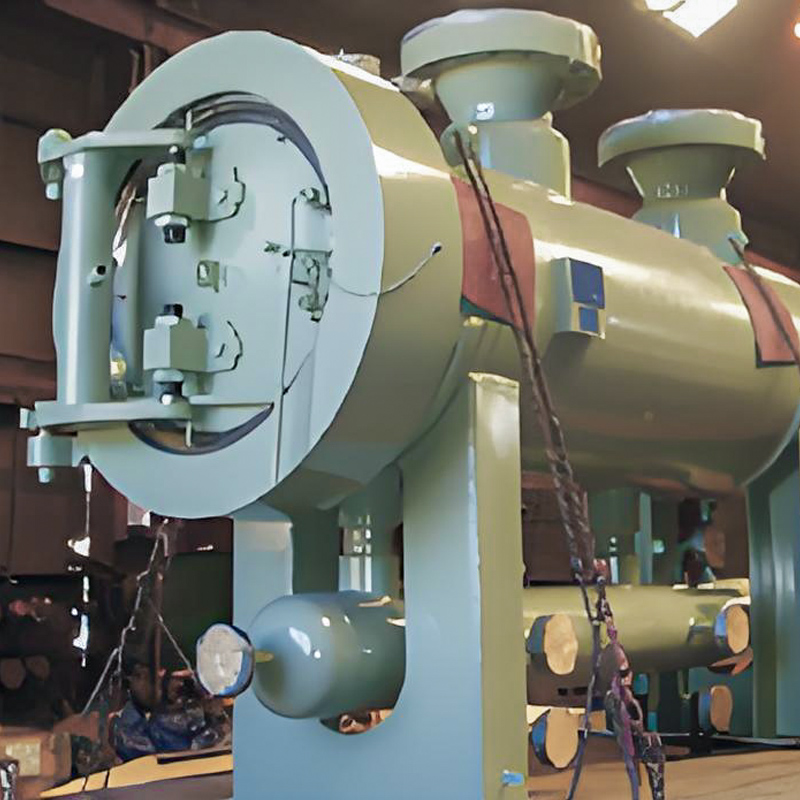

Coalescing Filters are high-efficiency industrial separation devices dedicated to solving gas-liquid or liquid-liquid separation challenges in critical processes. Unlike traditional filters, these products integrate filtration and coalescence functions, which can not only capture fine solid particles but also aggregate tiny liquid droplets into large droplets that are easy to separate. They are the core equipment for gas liquid separation, oil water purification, and fuel gas treatment, and are widely used in industries that require high-purity fluid or gas output.
The design of Coalescing Filters is based on the dual mechanism of filtration and coalescence. First, when the mixed fluid passes through the filter’s multi-layer metallic media, solid contaminants and tiny liquid droplets are intercepted. Then, the intercepted tiny liquid droplets collide and merge with each other on the surface of the special coalescence layer to form larger liquid droplets. Finally, the large liquid droplets settle under the action of gravity or centrifugal force and are discharged through the liquid collection system, while the purified gas or fluid flows out from the outlet. The optimized internal flow channel design ensures that the fluid stays in the filter for a sufficient time to achieve the best coalescence effect.
High-Efficiency Coalescence & Separation: The filter can separate liquid droplets as small as 0.1 µm from gas or other fluids, achieving a separation efficiency of over 99% in many scenarios.
Strong Adaptability to Variable Conditions: It can stably operate under extreme conditions with pressures up to 25 MPa and temperatures from -40 °C to 850 °C, adapting to the complex working environment of different industries.
Energy-Saving & Environmentally Friendly: The low-pressure-drop design reduces the energy consumption of fluid transportation, and the recyclable metallic filter elements are in line with the concept of green production.
Coalescing Filters are constructed with corrosion-resistant and high-temperature-resistant materials to ensure excellent performance in harsh separation environments. The main body materials include SS316L stainless steel, duplex alloys, Inconel, and Hastelloy, which can resist the corrosion of acidic, alkaline, and high-salt media. The filter elements are composed of a filtration layer and a coalescence layer. The filtration layer adopts sintered metal fiber or wedge wire structure, and the coalescence layer uses special pleated media with strong hydrophilic or oleophilic properties to enhance the coalescence effect.
Coalescing Filters are widely used in various industrial fields that require high-precision separation:
Oil & Gas Industry: Fuel gas coalescence and dehydration, natural gas liquid removal, and oil water separation in crude oil processing.
Petrochemical & Polymer Industry: Purification of process gas, separation of catalyst slurry liquid, and removal of trace moisture in polymer raw materials.
Power Generation & General Industry: Gas turbine fuel gas purification, compressor inlet air filtration, and industrial wastewater oil removal treatment.
The maintenance of Coalescing Filters is simple and convenient, and the cleaning method can be selected according to the degree of contamination. Pulse cleaning is suitable for daily online maintenance, which can quickly remove the surface contaminants of the filter element without affecting the normal operation of the system. Backwash and CIP are applicable for thorough cleaning when the differential pressure is too high. It is recommended to check the coalescence performance of the filter element regularly. If the separation efficiency decreases, the filter element should be replaced or cleaned in time.
We provide one-stop customized services for Coalescing Filters to meet your unique separation needs. You can customize the coalescence performance, material type, flow capacity, and cleaning system of the filter according to the properties of the treated fluid, such as viscosity, droplet size, and solid content. Our technical team will provide you with professional scheme design and technical consultation. Welcome to send your inquiry, and we will give you a detailed reply as soon as possible.
Ordinary filters only have the function of intercepting solid particles, while coalescing filters can not only filter solids but also aggregate tiny liquid droplets into large droplets for separation, realizing multi-functional purification of gas or liquid.
Yes, we can use corrosion-resistant materials such as Hastelloy or duplex alloys to manufacture the filter according to the properties of corrosive media, ensuring the long-term stable operation of the equipment.
