The objective of S-Zorb is: to reduce sulfur content in FCC gasoline to ultra-low levels (≤10 ppm) without damaging olefin content.
Basic Process
1.FCC gasoline is mixed with hydrogen and sent into the adsorptive reaction reactor.
Under operating conditions of 350–450 °C and 0.5–2.0 MPa, organic sulfur compounds in the gasoline react with a special adsorbent (Zorb catalyst).
2.Sulfur is captured by the adsorbent and converted into metal sulfides.
3.During regeneration, air or oxygen-lean gas is introduced to oxidize the sulfur into SO₂, which is discharged. Meanwhile, the adsorbent is regenerated and reused. This adsorption–regeneration cycle allows continuous desulfurization.
Therefore, the S-Zorb process is essentially a cyclic adsorption–regeneration desulfurization system, widely adopted in many Sinopec refineries across China.

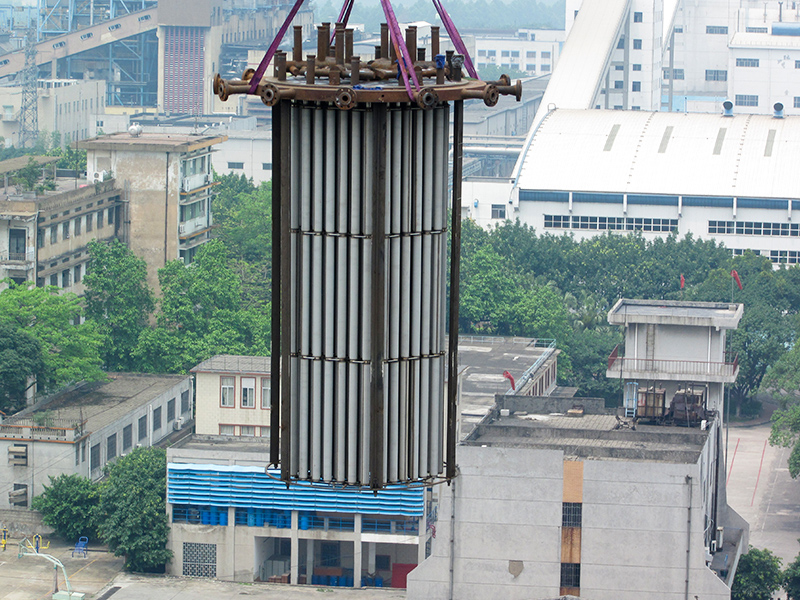

For example, in Sinopec Guangzhou, Berae delivered S-Zorb filter cartridges in 2014, 2017, 2021, and 2024—four complete sets in total.
Each set of cartridges has demonstrated a continuous service life of up to 36 months.
Their excellent stability and durability have significantly reduced replacement and shutdown costs, earning strong recognition from end-users.
Given the harsh operating environment and demanding requirements for stability and service life, there are very few domestic suppliers capable of manufacturing S-Zorb filter cartridges within the Sinopec system.
 |  |  |  |
Shaoguan Berae Filtration Technology Co., Ltd. is one of these qualified suppliers.
Berae's patented filter products have been successfully applied in major refineries including:
Sinopec Gaoqiao, Sinopec Guangzhou, Sinopec Qingdao, Sinopec Qilu, Fujian United Petrochemical, Zhongke Refining & Chemical, CNOOC Huizhou, Sinopec North China, Yanchang Petroleum, Sinopec Jingmen, and many others.
All units have operated stably and received outstanding feedback from clients.
With stability and filtration performance comparable to—or exceeding—imported filters, Berae's S-Zorb filter cartridges represent an important achievement in China's drive for domestic substitution of critical equipment.
As of 2025, Berae has delivered more than 20 complete S-Zorb filter cartridge sets nationwide.
